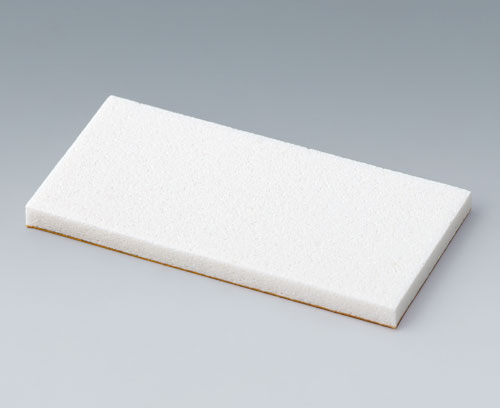

A9250251 Battery spacer
Scroll

A9250251

Battery spacer

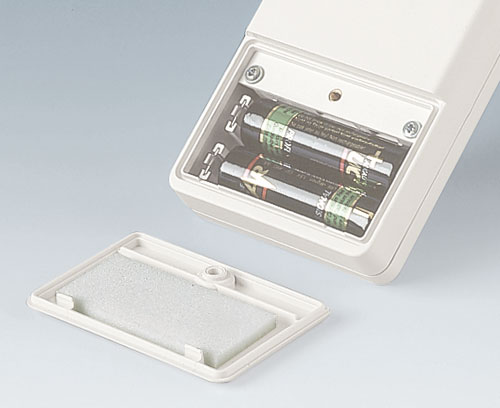

The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply

1 spacer

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9250251

Please select the product details you would like to include in the PDF.

Close
  • To be used for

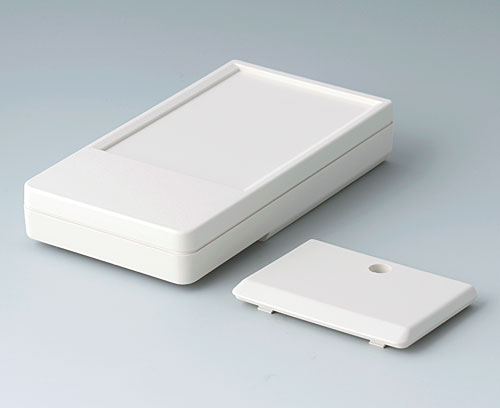

A9072107 DATEC-POCKET-BOX L

A9072107

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072107

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 41
A9072109 DATEC-POCKET-BOX L

A9072109

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072109

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072117 DATEC-POCKET-BOX L

A9072117

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072117

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 54
A9072119 DATEC-POCKET-BOX L

A9072119

DATEC-POCKET-BOX L Robust pocket box wit sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072119

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 54

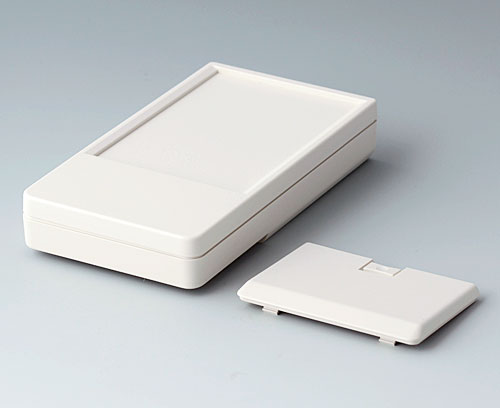

A9072127 DATEC-POCKET-BOX L

A9072127

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072127

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 41

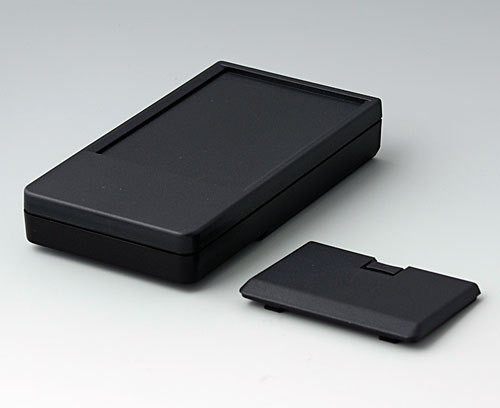

A9072129 DATEC-POCKET-BOX L

A9072129

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072129

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072209 DATEC-POCKET-BOX L

A9072209

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072209

DATEC-POCKET-BOX L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072219 DATEC-POCKET-BOX L

A9072219

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072219

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 54
A9072229 DATEC-POCKET-BOX L

A9072229

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072229

DATEC-POCKET-BOX L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
  • Technical Data
  • Purchasing Data
Material
PE foam
Standards
RoHS compliant
REACH compliant
Length
50 mm
Width
25 mm
Thickness
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.1 g
Customs tariff number
(OKW product)
39211900
Country of manufacture
Germany
