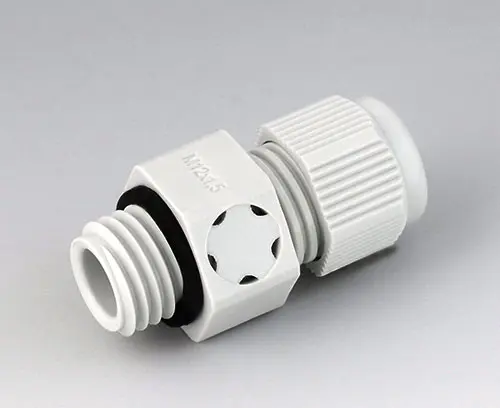

C2312917 Cable gland M12x1.5, pressure compensation
Scroll

C2312917

Cable gland M12x1.5, pressure compensation

Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 3 - 6.5 mm cables.

Supply

1 cable gland

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for C2312917

Please select the product details you would like to include in the PDF.

Close
  • Technical Data
  • Purchasing Data
Material
PA
Protection class
IP 68
Colour
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
