C2316126 Sealing ring for external thread M16x1.5

C2316126

Sealing ring for external thread M16x1.5

Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply

1 sealing ring for external thread

  • To be used for
C2316418 Cable gland M16x1.5

C2316418

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

Close

C2316418

Cable gland M16x1.5
product added to your list
PA
silver grey RAL 7001
IP 68

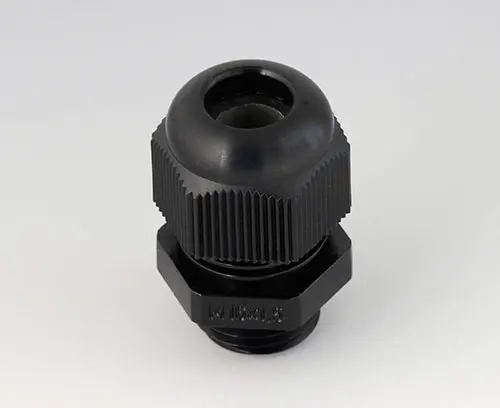

C2316419 Cable gland M16x1.5

C2316419

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

Close

C2316419

Cable gland M16x1.5
product added to your list
PA
black RAL 9005
IP 68
C2316518 Cable gland M16x1.5, bending protection

C2316518

Cable gland M16x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Close

C2316518

Cable gland M16x1.5, bending protection
product added to your list
PA
silver grey RAL 7001
IP 68

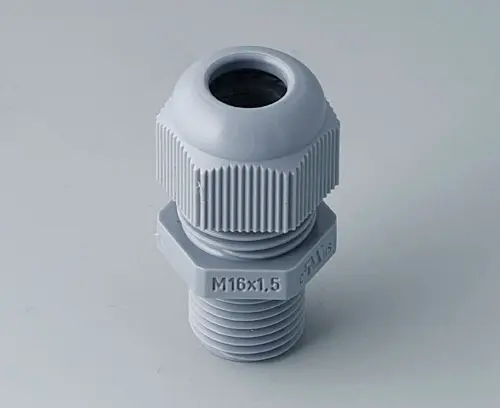

C2316618 Cable gland M16x1.5

C2316618

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 15 mm.

Supply 1 cable gland

Close

C2316618

Cable gland M16x1.5
product added to your list
PA
silver grey RAL 7001
IP 68
  • Technical Data
  • Purchasing Data
Material
Colour
natural-coloured
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
