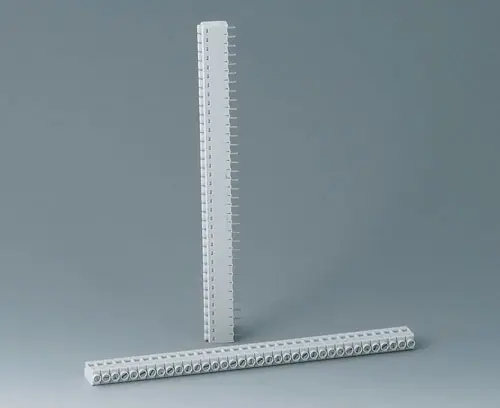

B6600111 Terminal block, block 5.0
Scroll

B6600111

Terminal block, block 5.0

PCB terminal block, 5.0. 36-pin.

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6600111

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6502121

RAILTEC B, 3 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x90x58mm
B6503121 RAILTEC B, 4 modules, Vers. VI

B6503121

RAILTEC B, 4 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6503121

RAILTEC B, 4 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x90x58mm

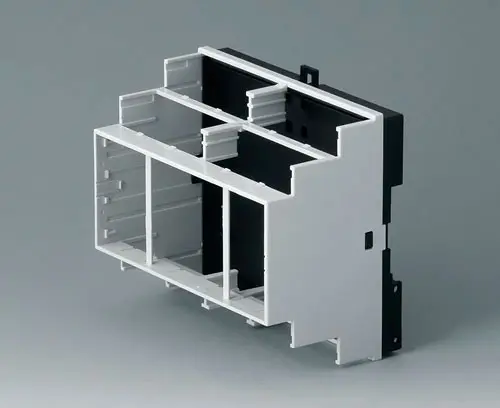

B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6504121

RAILTEC B, 6 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm

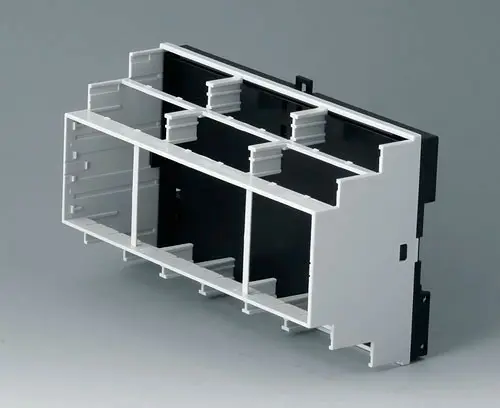

B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6505121

RAILTEC B, 9 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm

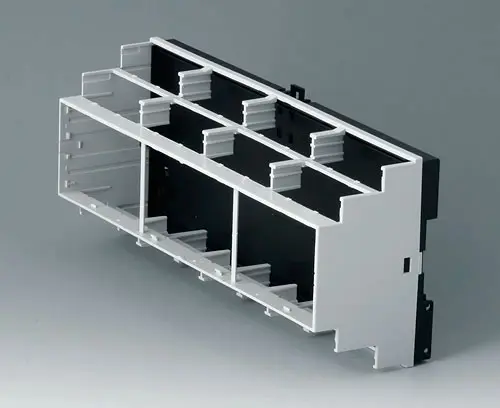

B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6506121

RAILTEC B, 12 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 68 (UL 94 V-0)
Colour
light grey
Standards
RoHS compliant
REACH compliant
Pitch
5.0 mm
Poles
36
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
40 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
