B6803650 Terminal block, block 5.08
Scroll

B6803650

Terminal block, block 5.08

PCB terminal block, 5.08. 12-pin.

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6803650

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6703100

RAILTEC C, 4 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey
71x90x58mm

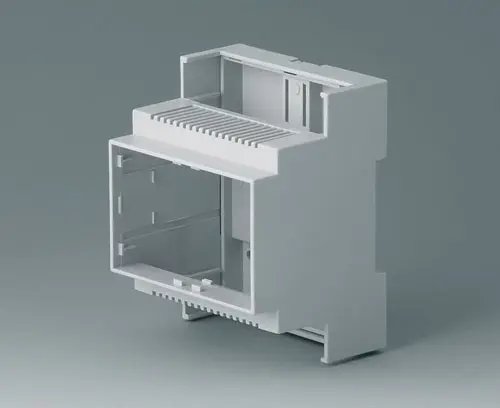

B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Close

B6703102

RAILTEC C, 4 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey
71x90x58mm

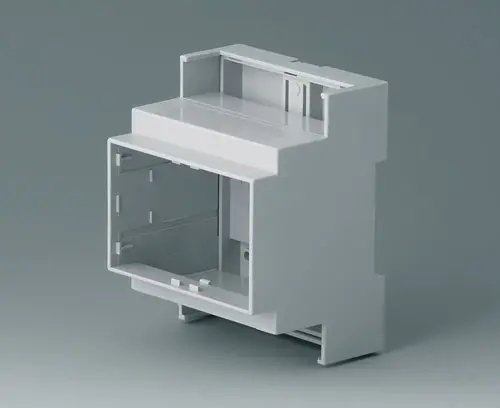

B6703104 RAILTEC C, 4 modules, Vers. III

B6703104

RAILTEC C, 4 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Close

B6703104

RAILTEC C, 4 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey
71x90x58mm

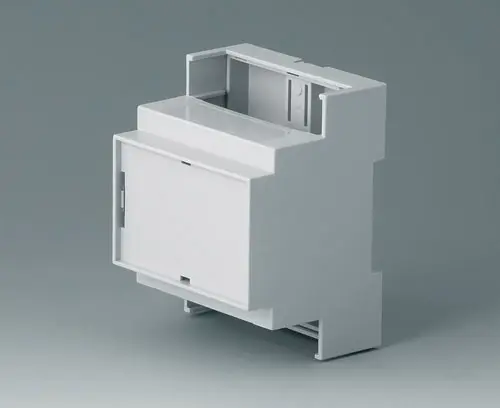

B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6703106

RAILTEC C, 4 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey
71x90x58mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 68 (UL 94 V-0)
Colour
light grey
Standards
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
12
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
