B7546208 Base 46
Scroll

B7546208

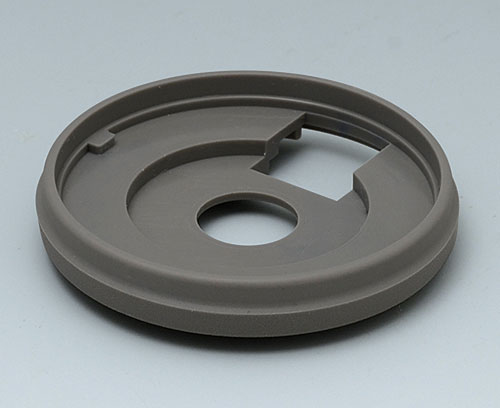

Base 46

Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply

1 base

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B7546208

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

System components to complete

B7146061 CONTROL-KNOBS 46, optional illumination

B7146061

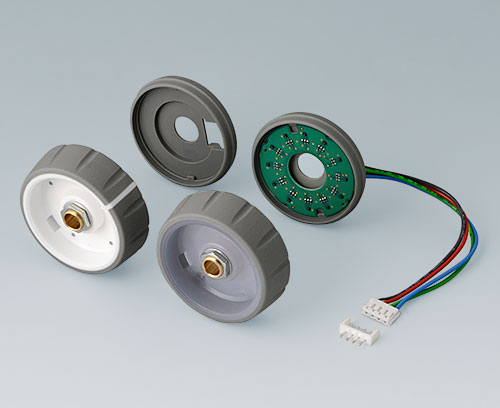

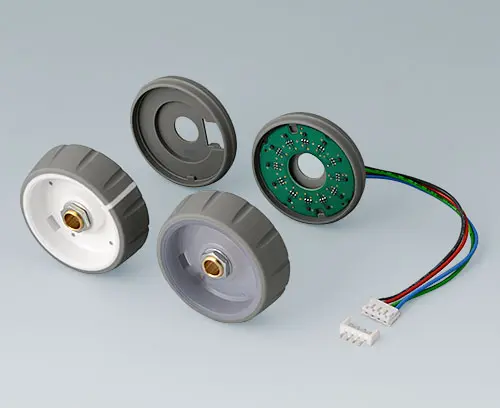

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7146061

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
nero
46x14.7mm
Bore hole 6mm
B7146062 CONTROL-KNOBS 46

B7146062

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7146062

CONTROL-KNOBS 46
product added to your list
PC
nero
46x14.7mm
Bore hole 6mm
B7146063 CONTROL-KNOBS 46, optional illumination

B7146063

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7146063

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
volcano
46x14.7mm
Bore hole 6mm
B7146064 CONTROL-KNOBS 46

B7146064

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7146064

CONTROL-KNOBS 46
product added to your list
PC
volcano
46x14.7mm
Bore hole 6mm
B7146631 CONTROL-KNOBS 46, optional illumination

B7146631

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7146631

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
nero
46x14.7mm
Bore hole 1/4″
B7146632 CONTROL-KNOBS 46

B7146632

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7146632

CONTROL-KNOBS 46
product added to your list
PC
nero
46x14.7mm
Bore hole 1/4″
B7146633 CONTROL-KNOBS 46, optional illumination

B7146633

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7146633

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
volcano
46x14.7mm
Bore hole 1/4″
B7146634 CONTROL-KNOBS 46

B7146634

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7146634

CONTROL-KNOBS 46
product added to your list
PC
volcano
46x14.7mm
Bore hole 1/4″
B7246061 CONTROL-KNOBS 46, optional illumination

B7246061

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7246061

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
nero
46x14.7mm
Bore hole 6mm
B7246062 CONTROL-KNOBS 46

B7246062

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7246062

CONTROL-KNOBS 46
product added to your list
PC
nero
46x14.7mm
Bore hole 6mm
B7246063 CONTROL-KNOBS 46, optional illumination

B7246063

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7246063

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
volcano
46x14.7mm
Bore hole 6mm
B7246064 CONTROL-KNOBS 46

B7246064

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7246064

CONTROL-KNOBS 46
product added to your list
PC
volcano
46x14.7mm
Bore hole 6mm
B7246631 CONTROL-KNOBS 46, optional illumination

B7246631

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7246631

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
nero
46x14.7mm
Bore hole 1/4″
B7246632 CONTROL-KNOBS 46

B7246632

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7246632

CONTROL-KNOBS 46
product added to your list
PC
nero
46x14.7mm
Bore hole 1/4″
B7246633 CONTROL-KNOBS 46, optional illumination

B7246633

CONTROL-KNOBS 46, optional illumination Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version With optional illumination – translucent optic ring on the top surface and pointer line on the side

Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

Close

B7246633

CONTROL-KNOBS 46, optional illumination
product added to your list
PC
volcano
46x14.7mm
Bore hole 1/4″
B7246634 CONTROL-KNOBS 46

B7246634

CONTROL-KNOBS 46 Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.

Version Traffic white colour optic ring on the top surface with pointer line on the side

Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)

Close

B7246634

CONTROL-KNOBS 46
product added to your list
PC
volcano
46x14.7mm
Bore hole 1/4″

Accessory

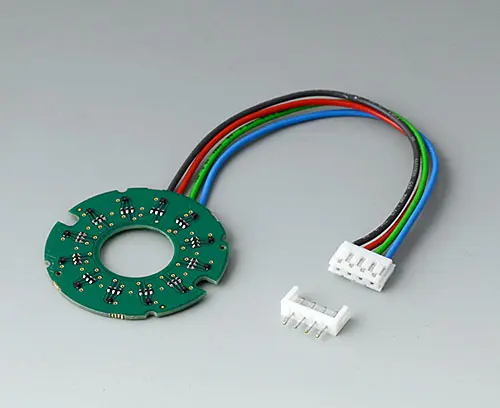

B7546002 LED illumination kit, 12 LEDs (RGB backlight)

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Close

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
product added to your list
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 6
Colour
volcano
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
