A9176128 Battery compartment XS, 2 x AA or 1 x 9V
Scroll

A9176128

Battery compartment XS, 2 x AA or 1 x 9V

Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply

1 battery compartment

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9176128

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

System components to complete

A9076107 DATEC-CONTROL XS, Vers. I

A9076107

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down (battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076107

DATEC-CONTROL XS, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
200x94x39.5mm
IP 65 opt.
A9076109 DATEC-CONTROL XS, Vers. I

A9076109

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076109

DATEC-CONTROL XS, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
200x94x39.5mm
IP 65 opt.
A9076157 SET: DATEC-CONTROL XS, Vers. I,station..

A9076157

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Close

A9076157

SET: DATEC-CONTROL XS, Vers. I,station..
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
200x94mm
IP 65 opt.
A9076159 SET: DATEC-CONTROL XS, Vers. I,station..

A9076159

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Close

A9076159

SET: DATEC-CONTROL XS, Vers. I,station..
product added to your list
ABS (UL 94 HB)
black RAL 9005
200x94mm
IP 65 opt.
A9076207 DATEC-CONTROL XS, Vers. II

A9076207

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076207

DATEC-CONTROL XS, Vers. II
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
200x94x39.5mm
IP 65 opt.
A9076209 DATEC-CONTROL XS, Vers. II

A9076209

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down.(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076209

DATEC-CONTROL XS, Vers. II
product added to your list
ABS (UL 94 HB)
black RAL 9005
200x94x40mm
IP 65 opt.
A9076257 SET: DATEC-CONTROL XS, Vers. II, station.

A9076257

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Close

A9076257

SET: DATEC-CONTROL XS, Vers. II, station.
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
200x94mm
IP 65 opt.
A9076259 SET: DATEC-CONTROL XS, Vers. II, station.

A9076259

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Close

A9076259

SET: DATEC-CONTROL XS, Vers. II, station.
product added to your list
ABS (UL 94 HB)
black RAL 9005
200x94mm
IP 65 opt.

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your list

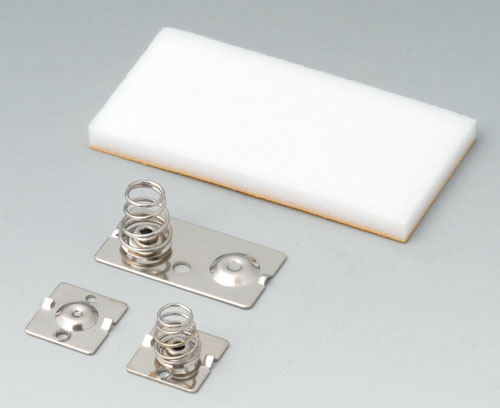

A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

Close

A9176007

Set of battery clips, 2 x AA
product added to your list
Steel
nickel-plated
  • Technical Data
  • Purchasing Data
Material
ABS (UL 94 HB)
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
