A9073409 DATEC-MOBIL-BOX S, Vers. IV
Scroll

A9073409

DATEC-MOBIL-BOX S, Vers. IV

Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version

Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply

Case-top and base, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9073409

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your list
A9173010 9 V contact kit, 1 x 9 V

A9173010

9 V contact kit, 1 x 9 V For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.

Supply 1 plug-in contact set

Close

A9173010

9 V contact kit, 1 x 9 V
product added to your list
ABS (UL 94 HB)
A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190011

Set of battery clips, 2 x AA
product added to your list
Steel
nickel-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your list
PE foam
50x25x4mm

Accessory "protection"

A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

Close

A9173001

Sealing kit S
product added to your list

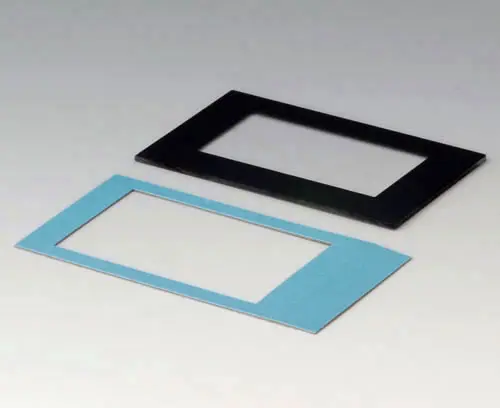

A9173409 Display window S, border black

A9173409

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Close

A9173409

Display window S, border black
product added to your list
Acrylic glass
transparent

Accessory "wall/holder"

A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226239

Wall suspension element
product added to your list
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your list
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your list
Stainless steel

Accessory

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250909

Tilt foot bar
product added to your list
ABS (UL 94 HB)
black RAL 9005

Customising options for A9073409

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit, display window (set with adhesive foil)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
152 mm
Width
83 mm
Height
33.5 mm
PCB length, base
104 mm
PCB width, base
72 mm
PCB length, top
141 mm
PCB width, top
72 mm
Display length, base
44 mm
Display width, base
17 mm
Keypad length
129 mm
Keypad width
67.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
122 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
