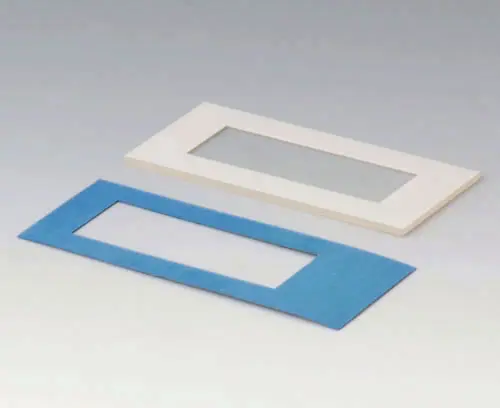

A9173307 Display window S, border off-white
Scroll

A9173307

Display window S, border off-white

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply

1 display window, 1 adhesive foil

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9173307

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options

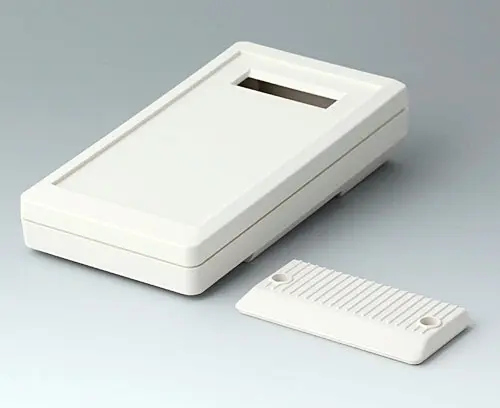

A9073307 DATEC-MOBIL-BOX S, Vers. III

A9073307

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9073307

DATEC-MOBIL-BOX S, Vers. III
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
152x83x33.5mm
IP 65 opt.

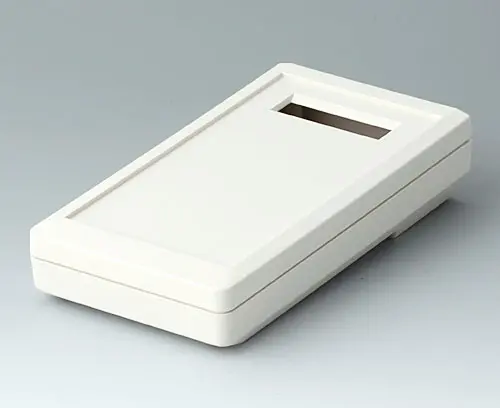

A9073317 DATEC-MOBIL-BOX S, Vers. III

A9073317

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, assembly kit

Close

A9073317

DATEC-MOBIL-BOX S, Vers. III
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
152x83x33.5mm
IP 65 opt.

Customising options for A9173307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Acrylic glass
Colour
transparent
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
