B4026117 DATEC-TERMINAL SL
Scroll

B4026117

DATEC-TERMINAL SL

Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply

1 basic housing, 4 screws, 4 non slip feet, 1 sealing

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4026117

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory to complete

B4026617 Cover SL

B4026617

Cover SL Suitable for DATEC-TERMINAL SL. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Close

B4026617

Cover SL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
264x180x23mm

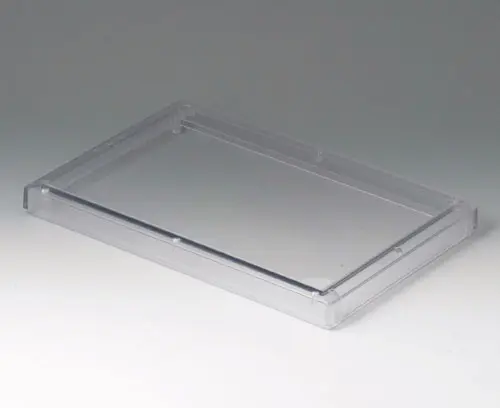

B4026621 Cover SL

B4026621

Cover SL Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Close

B4026621

Cover SL
product added to your list
PC (UL 94 V-0)
transparent
264x180x23mm
B4026637 Cover SL, convex

B4026637

Cover SL, convex Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Close

B4026637

Cover SL, convex
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
263x180x28mm
B4113671 Cover strip S / SL

B4113671

Cover strip S / SL For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Close

B4113671

Cover strip S / SL
product added to your list
PC (UL 94 V-0)
transparent
B4113677 Cover strip S / SL

B4113677

Cover strip S / SL For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Close

B4113677

Cover strip S / SL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
B4126106 Front panel SL

B4126106

Front panel SL Front panel SL for mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

Close

B4126106

Front panel SL
product added to your list
Aluminium
matt anodised
259.4x176x2mm

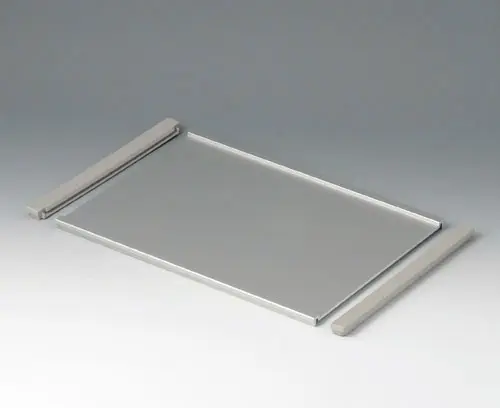

B4126126 Profile plate SL

B4126126

Profile plate SL Profile plate SL for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Close

B4126126

Profile plate SL
product added to your list
Aluminium
matt anodised
263x180x8mm

Accessory "wall/holder"

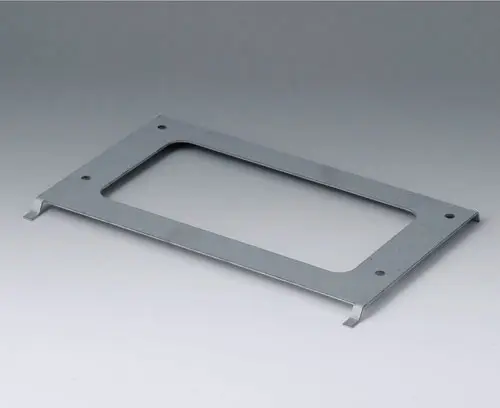

B4126147 Wall suspension element SL

B4126147

Wall suspension element SL Wall suspension element SL for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

Close

B4126147

Wall suspension element SL
product added to your list
Steel
galvanized
210x137x8mm

Customising options for B4026117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 54 opt.
Necessary accessories: cover / cover convex
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
264 mm
Depth
180 mm
Height
86 mm
PCB length, base
160 mm
PCB width, base
251 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
342 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
