B7040229 ERGO-CASE XS
Scroll

B7040229

ERGO-CASE XS

Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with two eyelet holes

Supply

top and bottom part, ring, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B7040229

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "carrying"

B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

Close

B7110129

Belt strap
product added to your list
black
450x35mm
B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

Close

B9100033

Wrist strap
product added to your list
black
280mm

Customising options for B7040229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

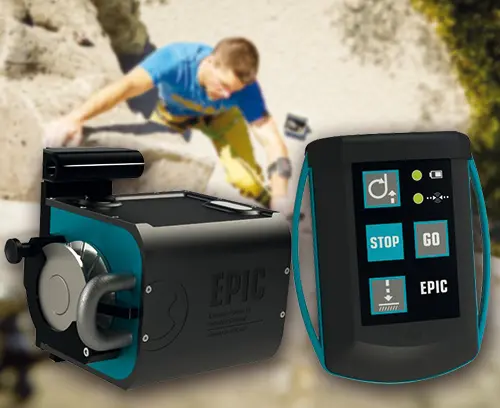

  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
Protection class
IP 42
Colour
Bottom and top part black RAL 9005,
Intermediate ring volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
82 mm
Width
56 mm
Height
24 mm
PCB length, base
48 mm
PCB width, base
45 mm
PCB length, top
53 mm
PCB width, top
40 mm
Keypad length
52 mm
Keypad width
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
