B3222101 NET-BOX 220, Vers. I
Scroll

B3222101

NET-BOX 220, Vers. I

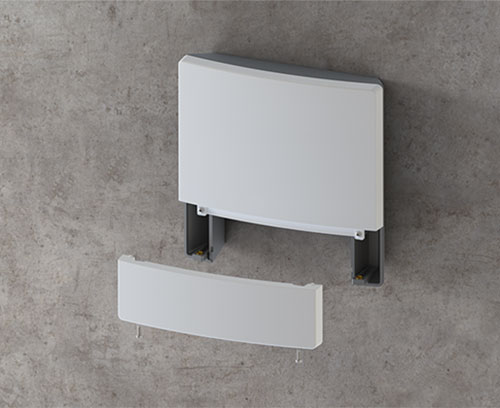

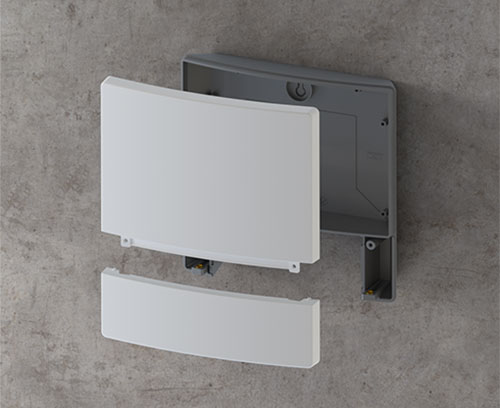

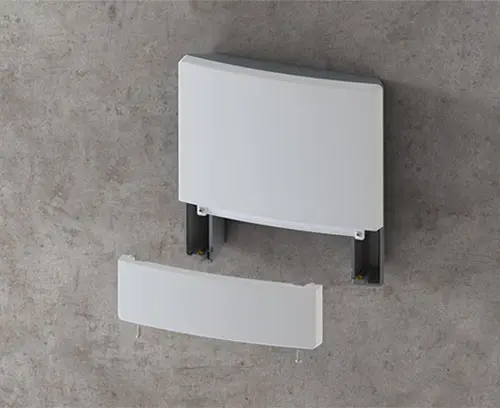

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version

Bottom part without openings.

Supply

1 bottom part and 1 top cover, 1 lid and 1 assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for B3222101

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "protection"

B3322159 Sealing kit 220

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

Close

B3322159

Sealing kit 220
product added to your list
Silicone
black

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your list

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent
B3322918 Infill cover 220

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3322918

Infill cover 220
product added to your list
ASA+PC (UL 94 V-0)
lava

Customising options for B3222101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

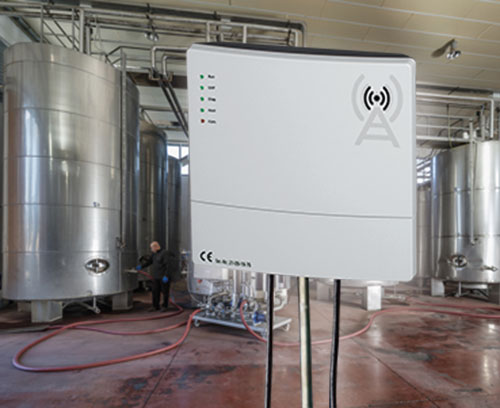

  • Application Examples
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 65 opt.
Necessary accessories: sealing kit, IP 40
Colour
Top cover and lid light grey RAL 7035,
Bottom part lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
220 mm
Height
220 mm
Depth
50.5 mm
PCB length, base
152 mm
PCB width, base
194 mm
PCB length, top
154 mm
PCB width, top
208 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
437 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
