Desk Cases

Practical sloping front desktop enclosures

These plastic enclosures are suitable for indoor applications in many different fields of electronics. Choose a case that will fully meet your requirements in terms of size and inclination of the control panel.

  • desk cases with inclined operating area
  • suitable for numeric keypads and membrane keyboards

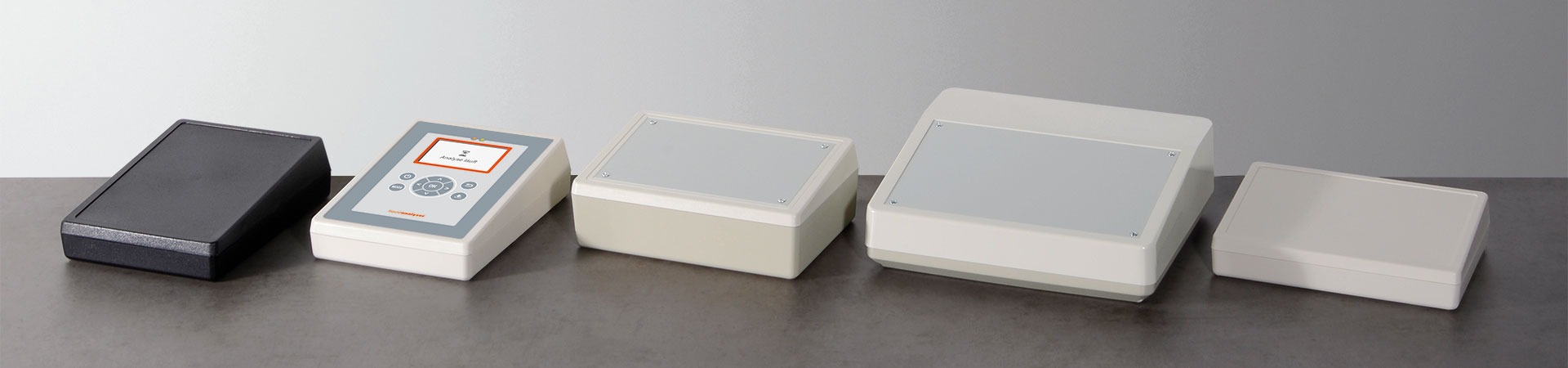

  • useful range of five different models

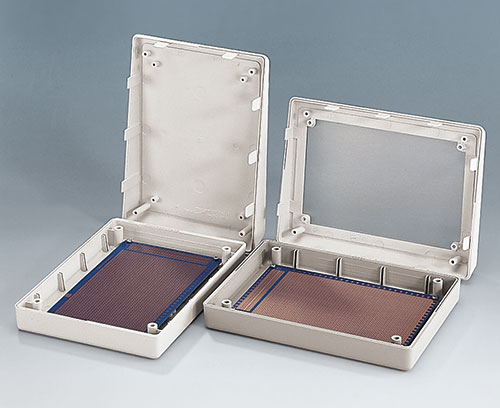

  • prepared for the assembly of eurocards 100 x 160 mm (types 138/190/190F/190H)
  • front panel versions are available for the installation of complete prefabricated electronic assemblies
  • connector mounting panel (types 220 & Combi F/H)
  • version with attachment for digital readouts, measuring equipment, encoders etc. (Combi Desk Case H)
  • protection class IP 40
  • wall suspension element as accessory
  • internal screw pillars for PCBs etc.
Generate PDF

Application fields

  • Systems for data collection on the job and machines
  • Communications equipment
  • Access and security controls
  • Data systems engineering
  • Medical, wellness and laboratory technologies
  • Industrial control and point-of-sale devices
  • Browse Full List
  • Accessories
  • View Customising Options

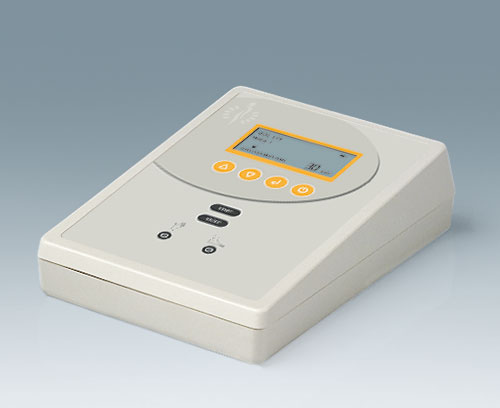

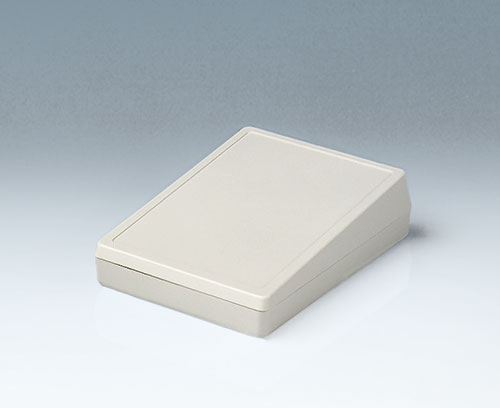

A0514007 DESK CASE 138

A0514007

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Close

A0514007

DESK CASE 138
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
138x190x54mm
A0514009 DESK CASE 138

A0514009

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm. Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Close

A0514009

DESK CASE 138
product added to your list
ABS (UL 94 HB)
black RAL 9005
138x190x54mm

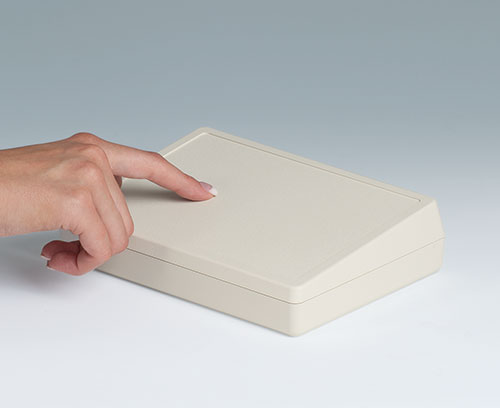

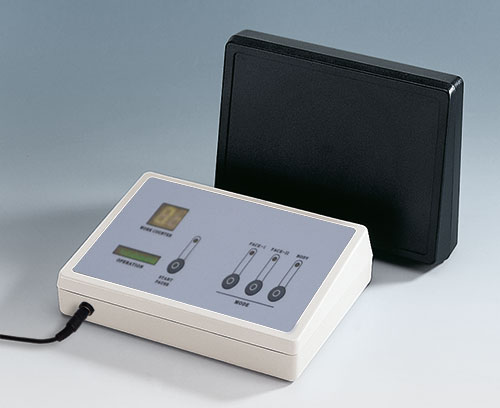

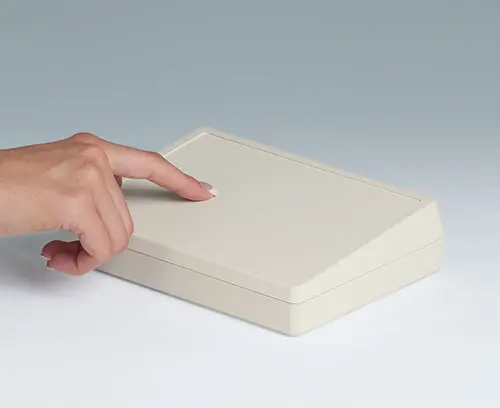

A0519007 DESK CASE 190

A0519007

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Close

A0519007

DESK CASE 190
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
190x138x47mm
A0519009 DESK CASE 190

A0519009

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Close

A0519009

DESK CASE 190
product added to your list
ABS (UL 94 HB)
black RAL 9005
190x138x47mm
A9082065 DESK CASE 220

A9082065

DESK CASE 220 Two-part case with sloped operation area. Fastenings pillars for mounting PCBs in the base. Raised rear area to accommodate plugs.

Supply 1 top and base part, assembly kit

Close

A9082065

DESK CASE 220
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
220x156x100mm

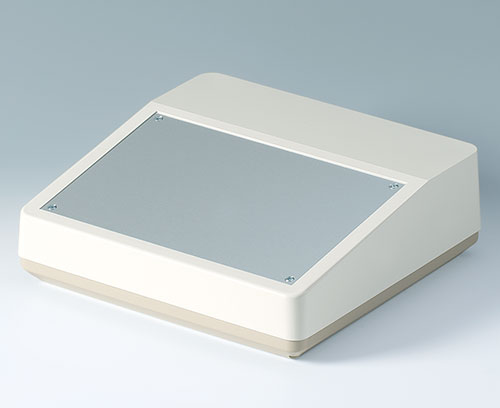

A9084165 COMBI DESK CASE F

A9084165

COMBI DESK CASE F Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Flat version without attachment

Supply 1 top and base part, assembly kit

Close

A9084165

COMBI DESK CASE F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
228x216x76mm
A9085165 COMBI DESK CASE H

A9085165

COMBI DESK CASE H Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Case with attachment, e.g. display

Supply 1 top and base part, attachment, assembly kit

Close

A9085165

COMBI DESK CASE H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
228x216x126mm

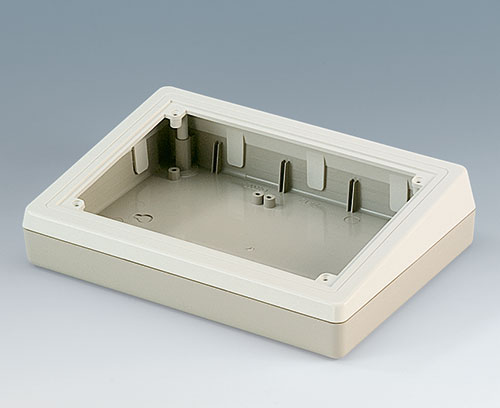

A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top prepared for front panel mounting, flat base part

Supply 1 top and base part, assembly kit

Close

A9086265

DESK CASE 190 F
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
190x138x47mm
A9086365 DESK CASE 190 H

A9086365

DESK CASE 190 H Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top for front panel mounting, higher base part

Supply 1 top and base part, assembly kit

Close

A9086365

DESK CASE 190 H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
190x138x70mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
A9180001 Front panel 220

A9180001

Front panel 220 Front panel for DESK CASE 220.

Supply 1 front panel (screws supplied with case)

Close

A9180001

Front panel 220
product added to your list
Aluminium
matt anodised
205.5x129.4x1.5mm

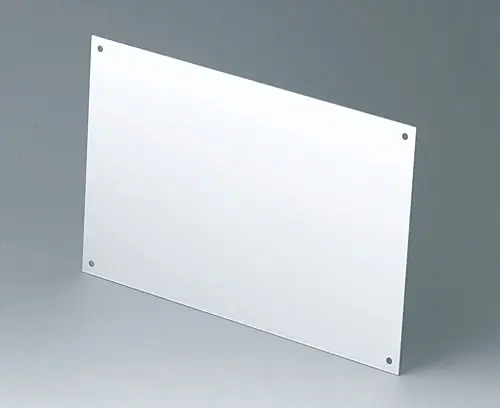

A9184001 Front panel

A9184001

Front panel Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply 1 front panel (screws supplied with case)

Close

A9184001

Front panel
product added to your list
Aluminium
matt anodised
200x130x1.5mm
A9185001 Front panel

A9185001

Front panel Front panel for attachment for COMBI DESK CASE H.

Supply 1 front panel (screws supplied with case)

Close

A9185001

Front panel
product added to your list
Aluminium
matt anodised
200x35x1.5mm
A9186001 Front panel 190 F/H

A9186001

Front panel 190 F/H Front panel for DESK CASE 190 F and H.

Supply 1 front panel (screws supplied with case)

Close

A9186001

Front panel 190 F/H
product added to your list
Aluminium
matt anodised
161.5x106x1.5mm
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 9.5 x 3.8 mm
product added to your list
transparent
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032

Customising options for Desk Cases

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
