HAND-HELD-BOXES
Scroll

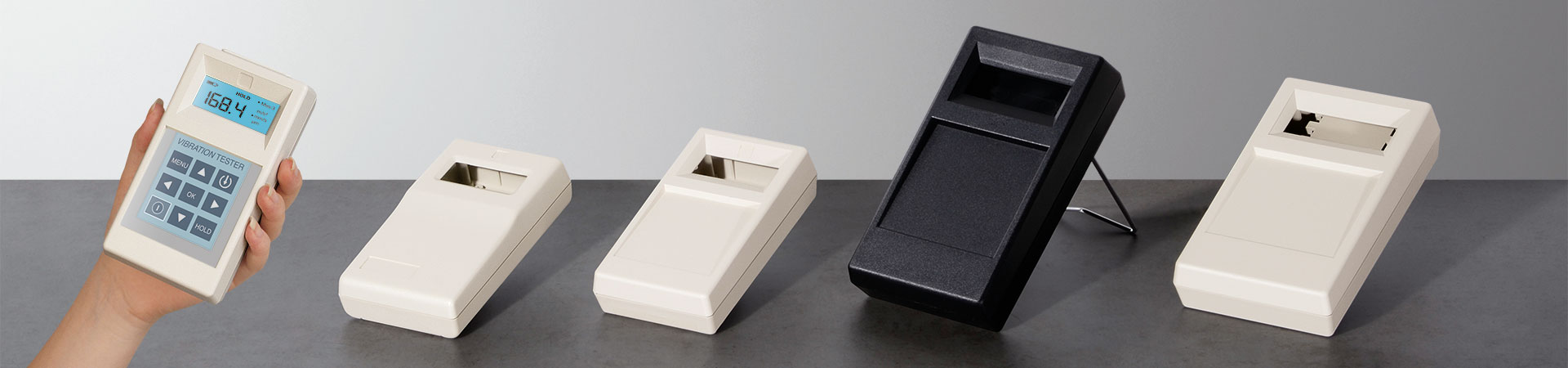

Hand-Held-Boxes

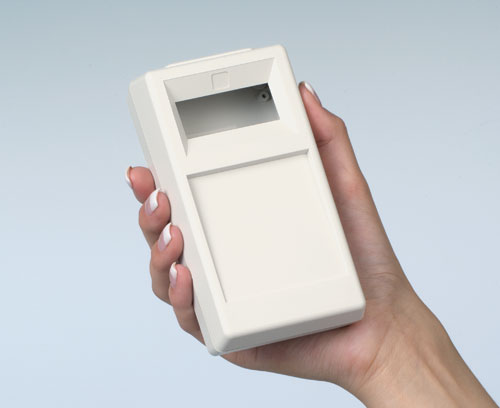

Handheld enclosures for measuring instruments

Tried and tested, simple and economic handheld plastic enclosures.

  • designed for mounting digital or analogue LCD display modules

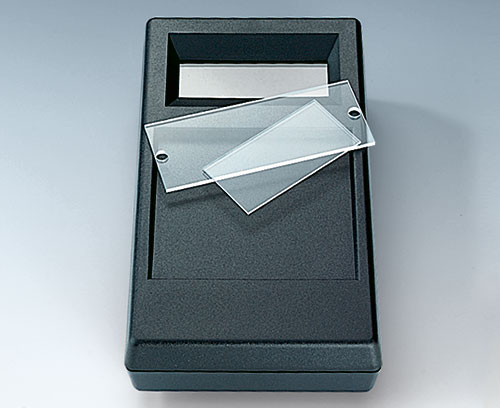

  • accessory acrylic windows protect the display modules and are easily fitted with the self-adhesive foils

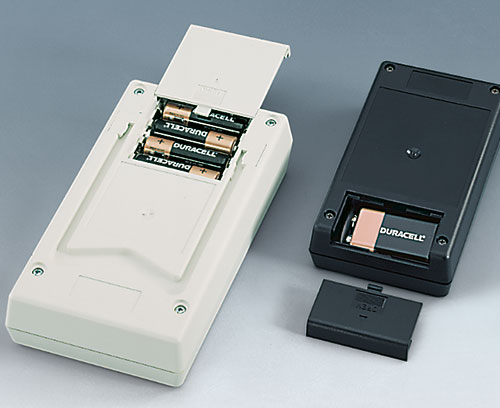

  • battery compartments for C, AA and 9 V cells
  • snap-in battery compartment lids for quick battery replacement

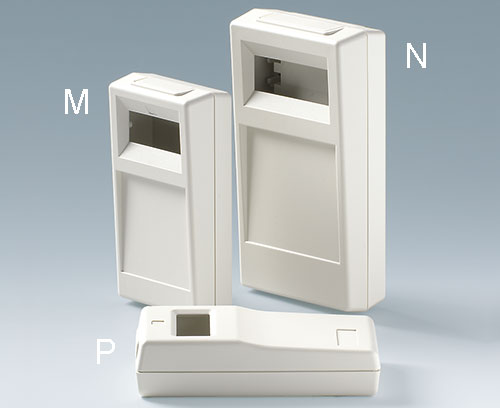

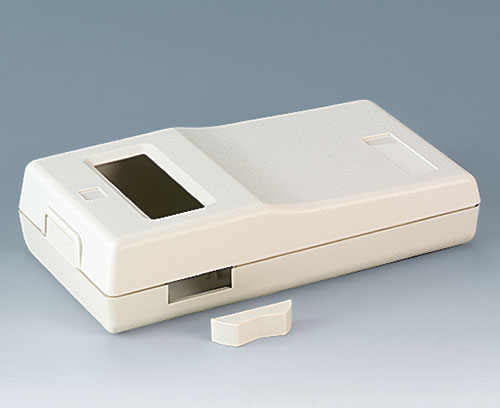

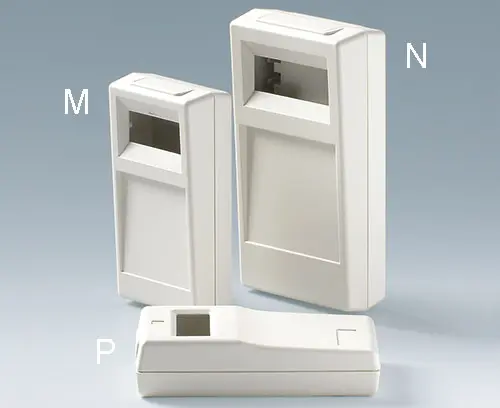

  • versions with/without switch cap (type P)

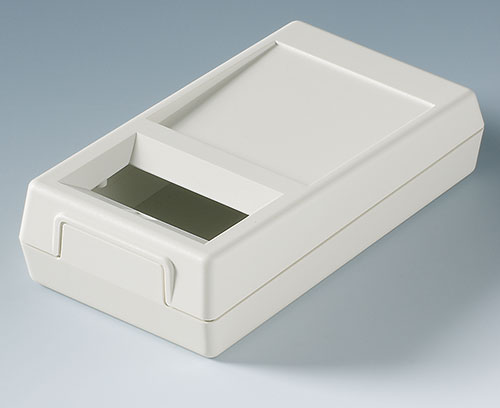

  • raised front area on the bottom part to accommodate plugs
  • tilt foot bar for ergonomic desktop applications

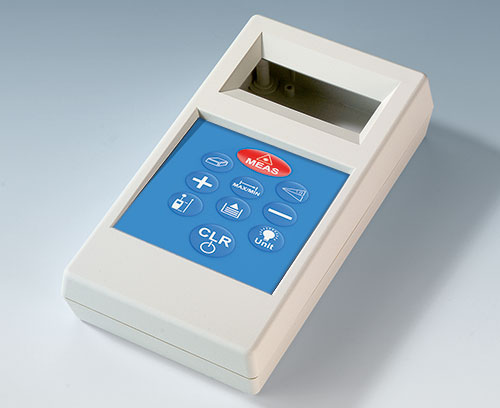

  • top recess for mounting membrane keypads (types M, N)
  • internal screw pillars for mounting PCBs
Generate PDF

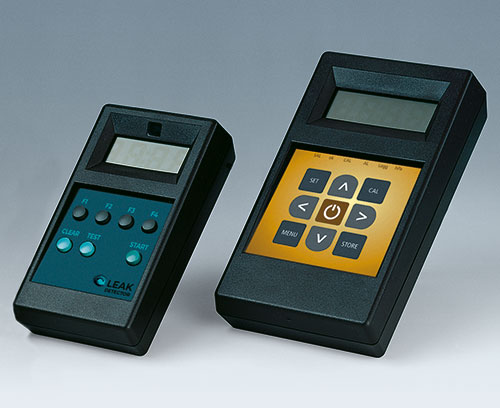

  • Application Examples

Application fields

  • Useful range of handheld cases for mounting digital and analogue instruments
  • Ideal for housing measuring and control technology e.g. continuity checkers, volt meters, field intensity meters, digital thermometers, flow meters etc.
  • Browse Full List
  • Accessories
  • View Customising Options
A9060007 HAND-HELD-BOX P, Vers. I

A9060007

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060007

HAND-HELD-BOX P, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
145x80x36.5mm
A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060009

HAND-HELD-BOX P, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
145x80x36.5mm
A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060017

HAND-HELD-BOX P, Vers. II
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
145x80x36.5mm
A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060019

HAND-HELD-BOX P, Vers. II
product added to your list
ABS (UL 94 HB)
black RAL 9005
145x80x36.5mm
A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Close

A9061017

HAND-HELD-BOX N, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Close

A9061019

HAND-HELD-BOX N, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
180x100x44mm
A9061117 HAND-HELD-BOX N, Vers. II

A9061117

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Close

A9061117

HAND-HELD-BOX N, Vers. II
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
A9061119 HAND-HELD-BOX N, Vers. II

A9061119

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Close

A9061119

HAND-HELD-BOX N, Vers. II
product added to your list
ABS (UL 94 HB)
black RAL 9005
180x100x44mm
A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Close

A9062017

HAND-HELD-BOX M, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
145x80x38.5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Close

A9062019

HAND-HELD-BOX M, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
145x80x38.5mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
A9100002 Ring eyelet

A9100002

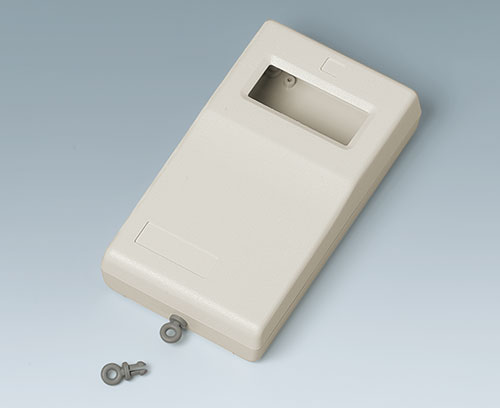

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your list
PA 6
volcano
A9160002 Cover plug

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

Close

A9160002

Cover plug
product added to your list
black RAL 9005
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your list
A9160004 Display window P

A9160004

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Close

A9160004

Display window P
product added to your list
Acrylic glass
transparent
60x30x1mm
A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Close

A9160005

Display window M
product added to your list
Acrylic glass
transparent
60x30x1mm
A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

Close

A9160006

Adhesive foil P/M
product added to your list
A9160007 Switch cap

A9160007

Switch cap For rocker-switch application.

Supply 1 switch cap

Close

A9160007

Switch cap
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
A9160009 Switch cap

A9160009

Switch cap For rocker switch-application.

Supply 1 switch cap

Close

A9160009

Switch cap
product added to your list
PA
black RAL 9005
A9161004 Display window N

A9161004

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

Close

A9161004

Display window N
product added to your list
Acrylic glass
transparent
90x36x2mm
A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

Close

A9161005

Adhesive foil N
product added to your list
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190013

Set of battery clips, 4 x AA
product added to your list
Steel
nickel-plated
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 9.5 x 3.8 mm
product added to your list
transparent
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your list
PE foam
50x25x4mm
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250807

Tilt foot bar
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
A9250809 Tilt foot bar

A9250809

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250809

Tilt foot bar
product added to your list
ABS (UL 94 HB)
black RAL 9005
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250817

Tilt foot bar
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
A9250819 Tilt foot bar

A9250819

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250819

Tilt foot bar
product added to your list
ABS (UL 94 HB)
black RAL 9005

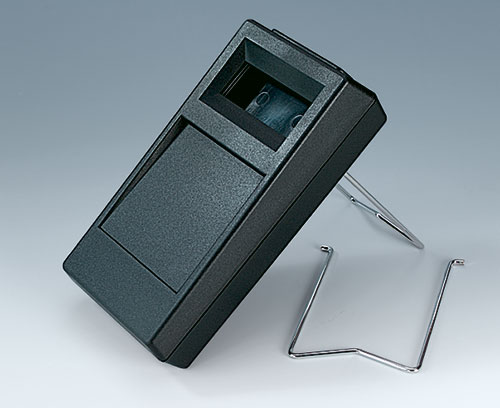

A9361009 Tilt foot bar

A9361009

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

Close

A9361009

Tilt foot bar
product added to your list
Steel
chromed

Customising options for Hand-Held-Boxes

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
