Wall mounting
Scroll

Wall mounting

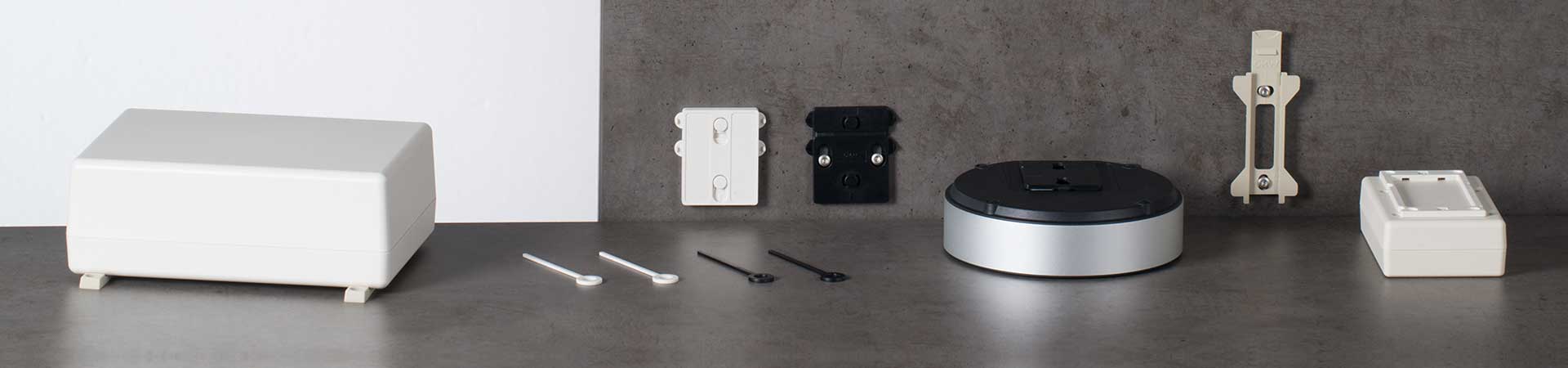

Universal wall suspension elements or wall-mounting brackets for external wall mounting of our small plastic enclosures.

Generate PDF
  • Browse Full List
  • View Customising Options
A9204108 Wall mounting brackets

A9204108

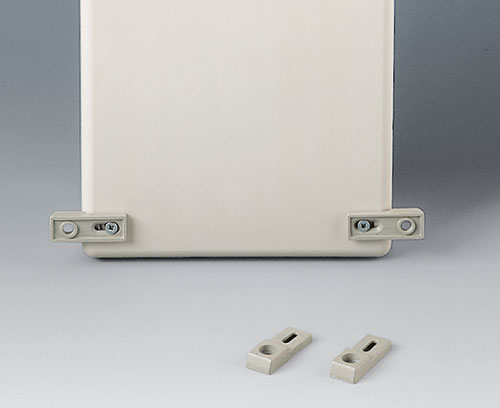

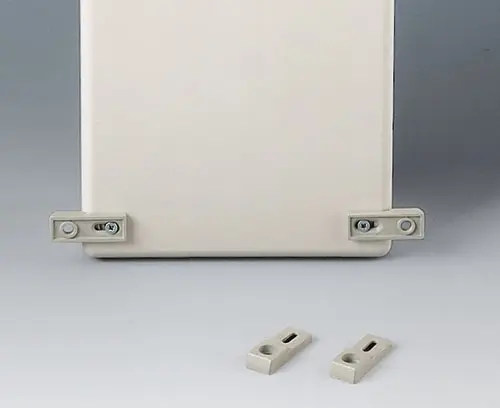

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Close

A9204108

Wall mounting brackets
product added to your list
PA 6
pebble grey RAL 7032
A9305017 Wall suspension elements

A9305017

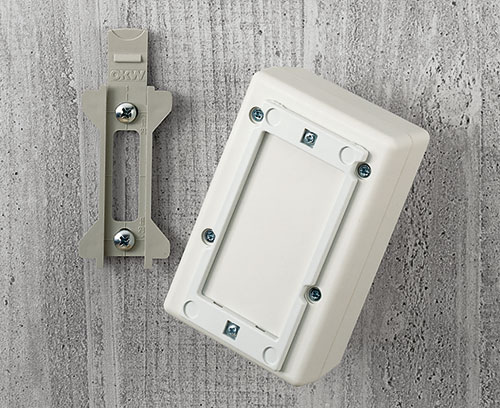

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Close

A9305017

Wall suspension elements
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9305019 Wall suspension elements

A9305019

Wall suspension elements Universal wall suspension element suitable for small plastic enclosures with a flat base.
The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply 1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

Close

A9305019

Wall suspension elements
product added to your list
ASA+PC (UL 94 V-0)
black RAL 9005
A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

Close

A9305147

Adhesive foil holder
product added to your list
B1350048 Wall suspension elements

B1350048

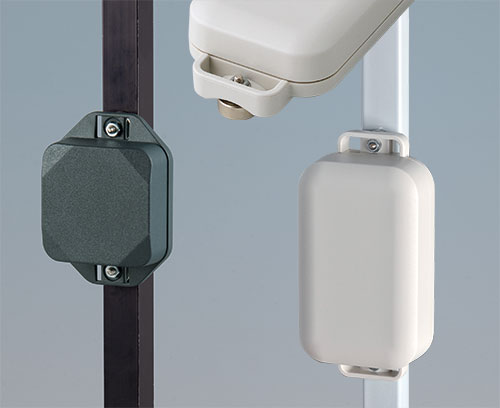

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032

Customising options for Wall mounting

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
