Star-Knobs

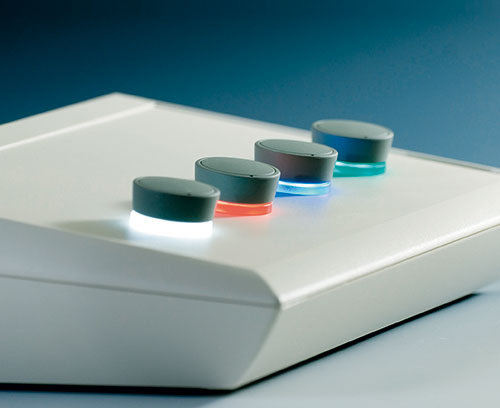

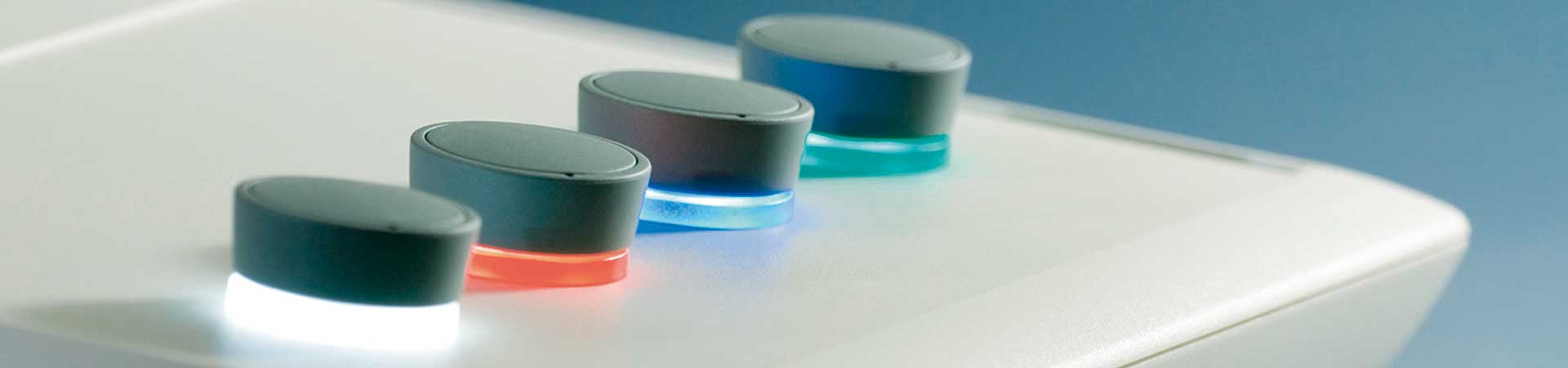

Modern illuminated tuning knobs

Our STAR-KNOBS are designed for menu driven interfaces, click rotation and click push-in for ‘OK’. This reduces the number of knobs and controls required on the front panel. The illumination is a visual highlight and enhances user operation of the equipment.

  • innovative design for flush fitting or surface mounting

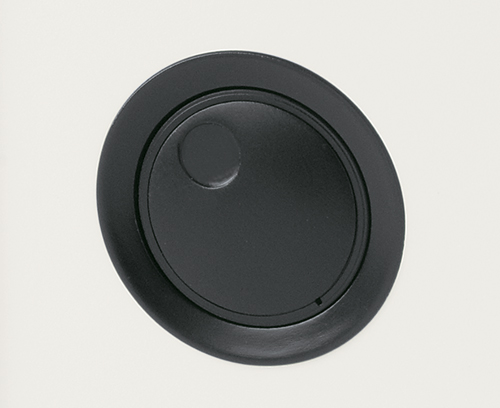

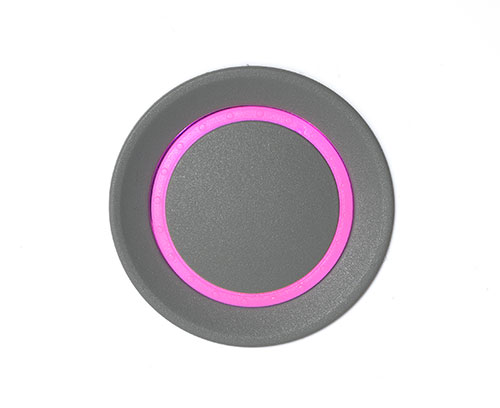

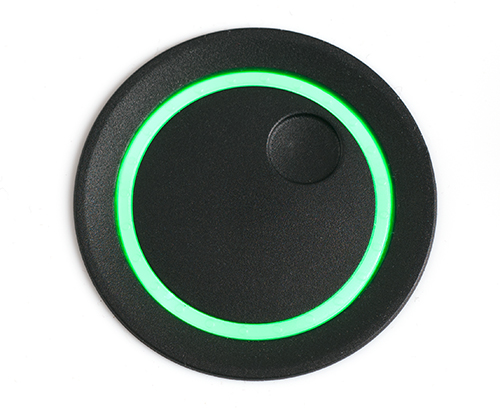

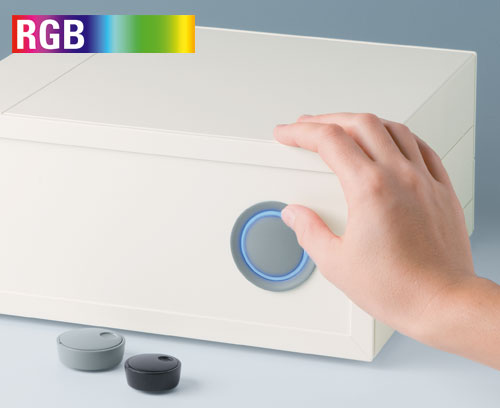

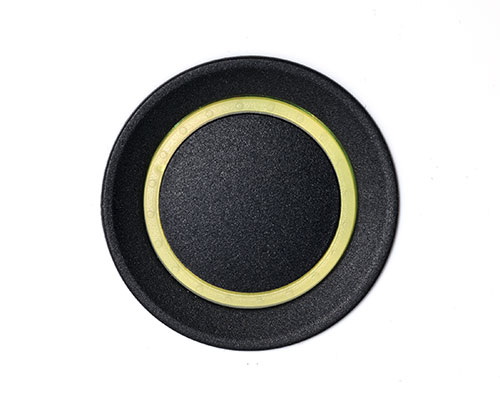

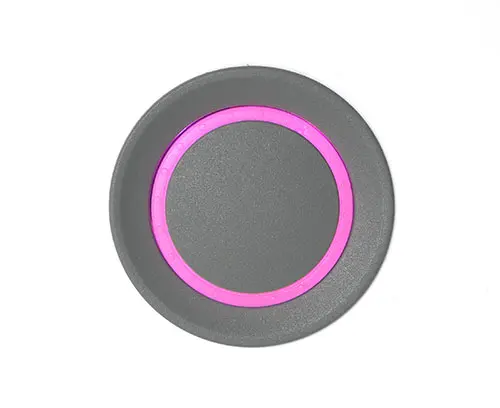

  • the flush-fitting version represents an attractive transition between the knob and the front of the device; the knob can be illuminated, that is, a ring lights up between the recess and the knob cover

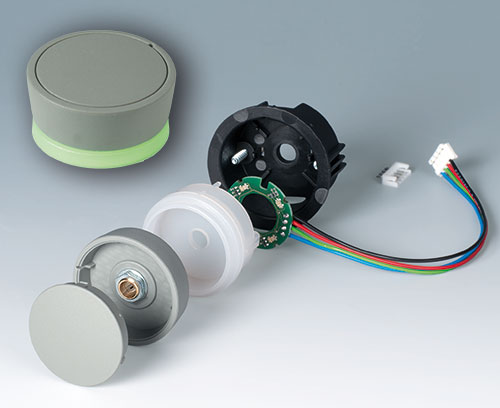

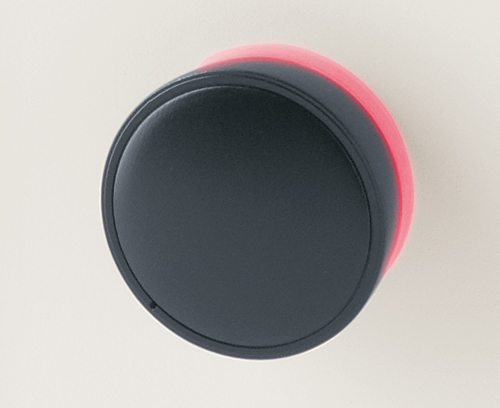

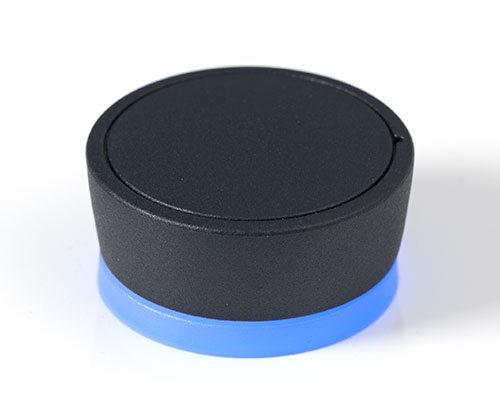

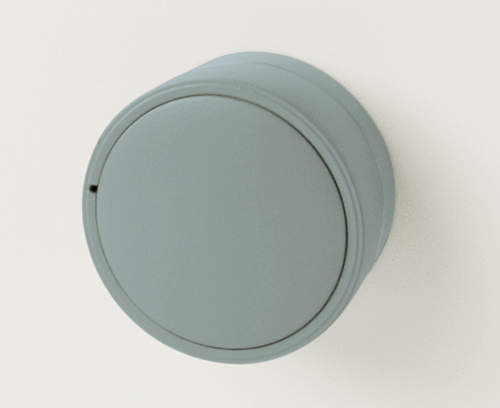

  • with the surface-mounted version, the knob design makes a great impression thanks to the slight inclination of the body towards the inner axis, thus allowing ergonomically comfortable operation; the knob is mounted on an approx. 3 mm high ring, which can be illuminated if required
  • illumination possible with modern, energy-saving SMD LED technology for power supply units with 5 V: either white backlight for the colours diamond, emerald and sapphire or RGB backlight for individual colours as accessory

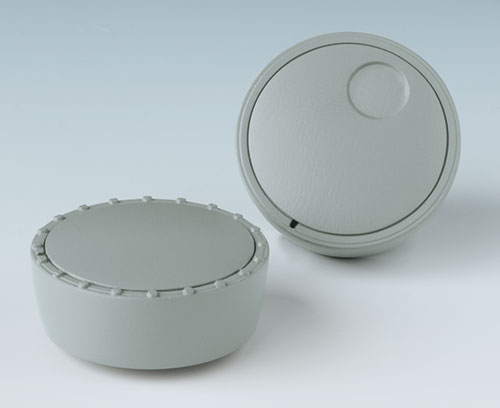

  • knob with or without knurls
  • cover with or without finger recess for fine adjustments

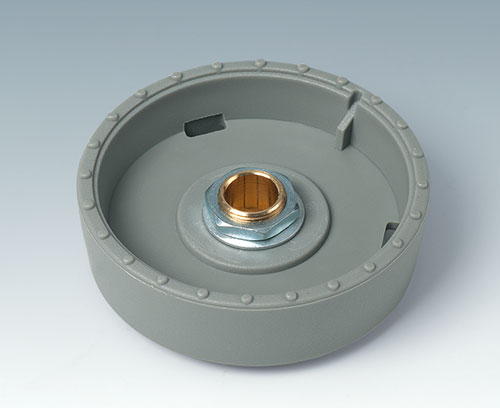

  • tried and tested collet fixture system with secure fit on the axle
  • max. torques: assembly = 1.5 Nm, function = 1.2 Nm

knob sizes  boreholes
ø 33 mm  6 mm, 1/4"
ø 41 mm   6 mm

Minimum Components for 1 STAR-KNOB:
1 knob, 1 cover, 1 assembly kit

Generate PDF
  • Application Examples

Application fields

For rotary potentiometers or rotary pulse generators with round shaft ends in accordance with DIN 41591, including touch function

  • Measuring and control technology
  • Health Care
  • Heating and air conditioning
  • Communication devices
  • Building management
  • Smart Factory
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want below or browse full product list

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your list
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your list
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your list
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Close

A6300000

Spanner
product added to your list

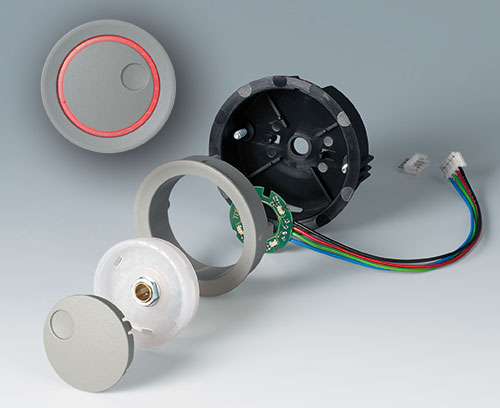

B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Close

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
product added to your list
B8733001 Assembly support 33

B8733001

Assembly support 33 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

Close

B8733001

Assembly support 33
product added to your list
ABS (UL 94 HB)
green

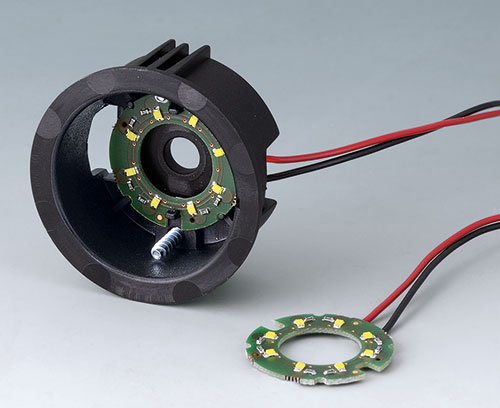

B8733004 LED illumination kit

B8733004

LED illumination kit PCB D = 27 mm with 8 LEDs (white light), SMD-technology, connecting cable 120 mm long, 2-pin connector at the end, incl. PCB connector. Universally applicable for knob sizes 33 and 41 mm.
Recommended for flush-fitting version: only in conjunction with the translucent* knob.
Recommended for surface-mounted version: only in conjunction with the translucent* assembly kit.
(*translucent = colours diamond, ruby, emerald, sapphire).

Supply 1 LED illumination kit

Close

B8733004

LED illumination kit
product added to your list
B8741001 Assembly support 41

B8741001

Assembly support 41 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

Close

B8741001

Assembly support 41
product added to your list
ABS (UL 94 HB)
green

Customising options for Star-Knobs

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
