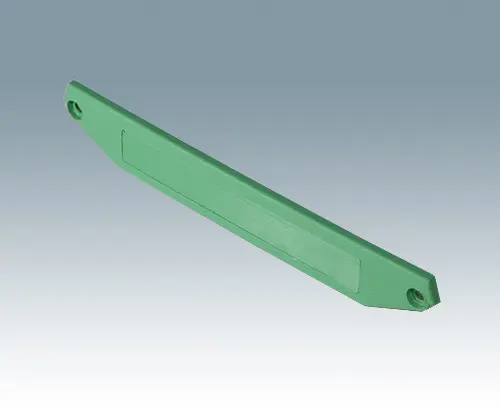

CIME/E/EC0000E RAILTEC SUP. EXT 107, end cover
Scroll

CIME/E/EC0000E

RAILTEC SUP. EXT 107, end cover

End cover for extruded base section (107 mm PCB), fixed by two self-tapping screws. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.

Supply

1 end cover

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for CIME/E/EC0000E

Please select the product details you would like to include in the PDF.

Close
  • To be used for

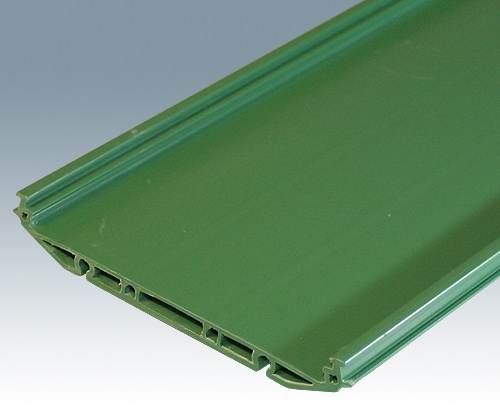

CIME/E/BExxx RAILTEC SUP. EXT 107, base section

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section Extruded base section for 107 mm PCBs  - 'XXX' in part no = your PCB width (we will supply the base extrusion pre-cut to this dimension). E.g. 200 mm wide PCB = order Part No. CIME/E/BE200. Minimum cut = 70 mm. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.
Note: The weight shown in purchasing data refers to profiles with 100 mm length.

Supply 1 base section (cut to your PCB size)

Close

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section
product added to your list
PA (UL 94 V-0)
green
117x18mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA (UL 94 V-0)
Colour
green
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Height
18 mm
Depth
107 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
