A9108113 Front / rear panel V, O 155
Scroll

A9108113

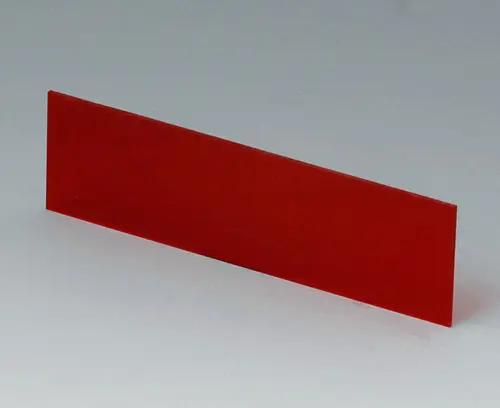

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply

1 front panel

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9108113

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
A9408330 SHELL-TYPE CASES O 155, Vers. I

A9408330

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408330

SHELL-TYPE CASES O 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408333

SHELL-TYPE CASES V 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408336 SHELL-TYPE CASES V 155, Vers. IV

A9408336

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408336

SHELL-TYPE CASES V 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408638 SHELL-TYPE CASES V 155, Vers. V

A9408638

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408638

SHELL-TYPE CASES V 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm

Customising options for A9108113

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Acrylic glass
Colour
red transparent
Standards
RoHS compliant
REACH compliant
Width
81.9 mm
Height
23.6 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2.6 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
