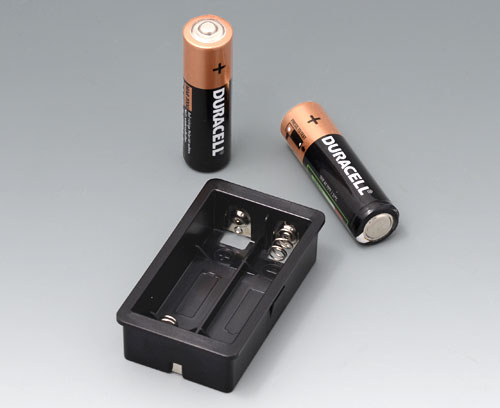

EZ060609 Battery compartment, 2 x AA
Scroll

EZ060609

Battery compartment, 2 x AA

For 2 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply

1 battery compartment, set of battery clips

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for EZ060609

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
ER103059 SYNERGY R100

ER103059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER103059

SYNERGY R100
product added to your list
Aluminium AlMgSi 0.5
matt anodised
⌀100x40mm
IP 40
ER106059 SYNERGY R100

ER106059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER106059

SYNERGY R100
product added to your list
Aluminium AlMgSi 0.5
matt anodised
⌀100x70mm
IP 40
ER109059 SYNERGY R100

ER109059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER109059

SYNERGY R100
product added to your list
Aluminium AlMgSi 0.5
matt anodised
⌀100x100mm
IP 40

Customising options for EZ060609

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Plastic parts
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
13 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
