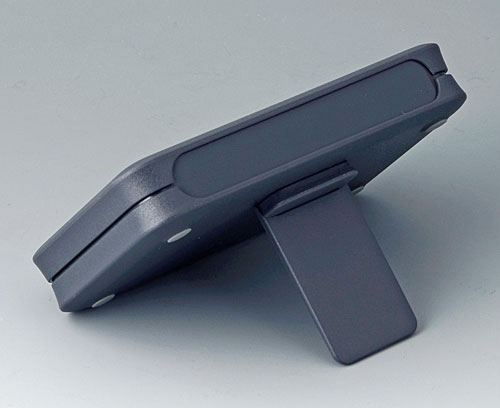

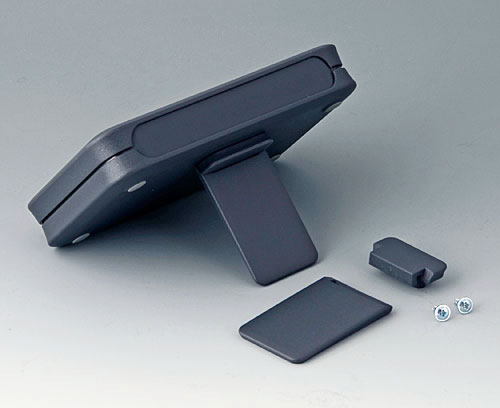

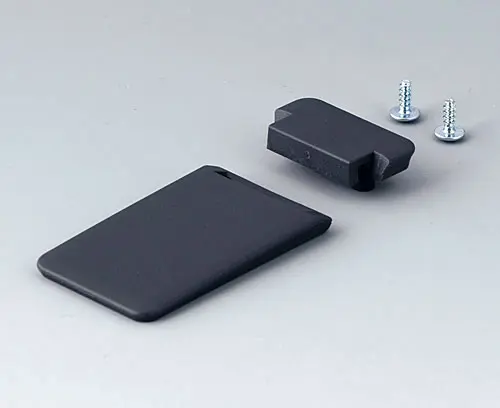

A9152058 Tilt foot bar
Scroll

A9152058

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply

1 tilt foot bar, assembly kit

3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9152058

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

System components to complete

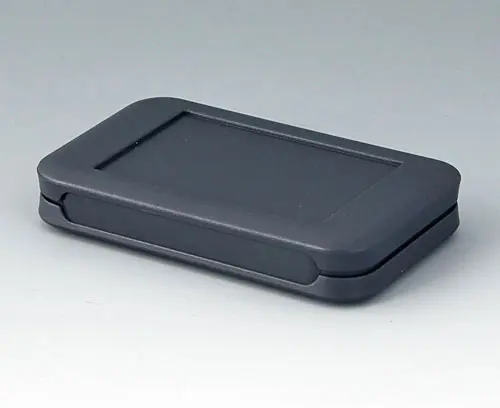

A9050108 SOFT-CASE S

A9050108

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050108

SOFT-CASE S
product added to your list
ABS (UL 94 HB)
lava
51x82x14mm
IP 54 opt., IP 40
A9051108 SOFT-CASE M

A9051108

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9051108

SOFT-CASE M
product added to your list
ABS (UL 94 HB)
lava
65x105x19mm
IP 54 opt., IP 40

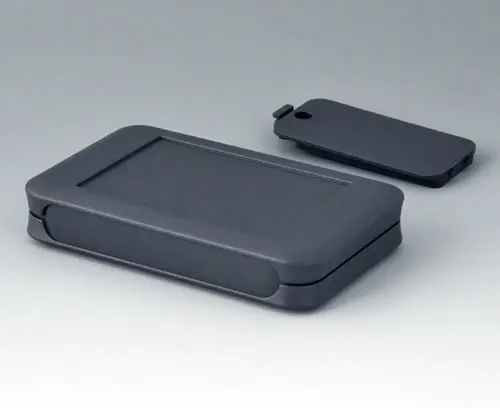

A9051118 SOFT-CASE M

A9051118

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9051118

SOFT-CASE M
product added to your list
ABS (UL 94 HB)
lava
65x105x19mm
IP 40

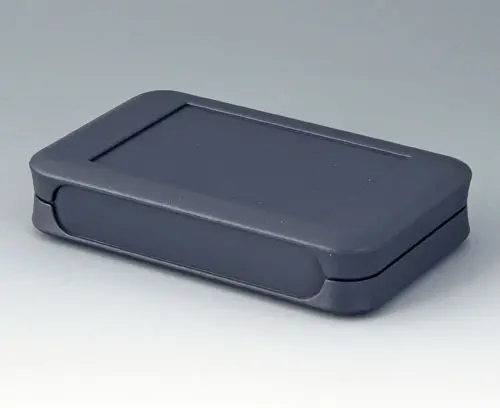

A9052108 SOFT-CASE L

A9052108

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9052108

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
73x117x24mm
IP 54 opt., IP 40

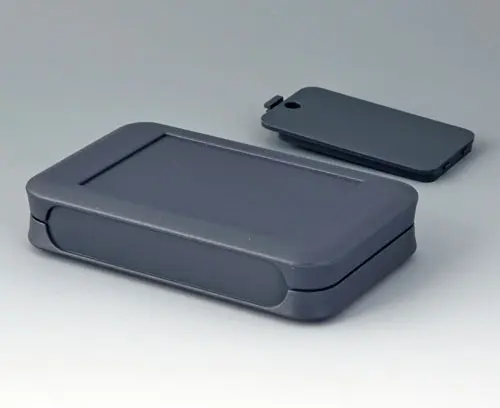

A9052118 SOFT-CASE L

A9052118

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052118

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
73x117x24mm
IP 40
A9052128 SOFT-CASE L

A9052128

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052128

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
73x117x24mm
IP 40
A9053108 SOFT-CASE XL

A9053108

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9053108

SOFT-CASE XL
product added to your list
ABS (UL 94 HB)
lava
92x150x28mm
IP 40
A9053118 SOFT-CASE XL

A9053118

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9053118

SOFT-CASE XL
product added to your list
ABS (UL 94 HB)
lava
92x150x28mm
IP 40

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent

Customising options for A9152058

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
lava
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
