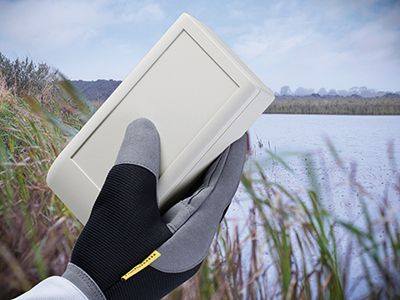

NEW DATEC-COMPACT IP 65 HANDHELD ENCLOSURES

Datec-Compact handheld enclosures

UV-stable and flame retardant cases outdoor use

DATEC-COMPACT is OKW’s brand new range of handheld enclosures for outdoor electronics – our first to offer integrated charging contacts as an option.

IP65 protection comes as standard so you don’t have to specify optional seals. UV stability is another key feature. These ergonomic electronic enclosures are manufactured from an ASA+PC-FR blend (UL 94 V-0).

DATEC-COMPACT is aimed at applications including mobile data recording and transfer, measuring and control, stock and sales logging. Units come in one size at present (172 mm x 92 mm x 39 mm) with optional desk stations and wall holders (either with or without built-in contacts).

The cases can be specified with an optional battery compartment (3 x 1.5 V AA). Other features include Torx T10 screws to make the enclosures tamper-proof. Accessories include a battery contact kit, male contacts (for the desk station), female contacts (for the case), non-slip feet, PCB screws and a Torx T10 screwdriver.

All units in the DATEC-COMPACT range – cases, desk stations and wall holders – can be specified in two standard colours: Off-white (RAL 9002) and Lava Grey (NCS S 7502-B). Custom colours are available on request.

View Datec-Compact >>

Get Expert Advice On Enclosures

Contact OKW – the electronic enclosures specialist – for expert technical advice on the best housings for your PCBs and electronic components.

Contact our team and discover how easy it is to specify the perfect enclosures for your electronics.
